NAME

MACINTOSH SE

MANUFACTURER

Apple

TYPE

Professional Computer

ORIGIN

U.S.A.

YEAR

March 1987

END OF PRODUCTION

1989

BUILT IN LANGUAGE

None

KEYBOARD

Typewriter style, 84 keys with numeric keypad

CPU

Motorola MC 68000

SPEED

7.83 MHz

RAM

1 MB (up to 4 MB)

ROM

256 KB

GRAPHIC MODES

512 x 342

COLORS

Monochrome

SOUND

8-bit mono sound chip

SIZE / WEIGHT

13.6 (H) x 9.6 (W) x 10.9 (D) in / 19.5 lb.

I/O PORTS

Centronics, ADB (2: Keyboard, mouse), RS232/422, Internal expansion slot (96-pin Eurodin)

BUILT IN MEDIA

One or Two 3.5'' disk-drives, 20 to 80 MB HDD

OS

MAC OS 4.0

POWER SUPPLY

Built-in switching PSU

PRICE

$3700

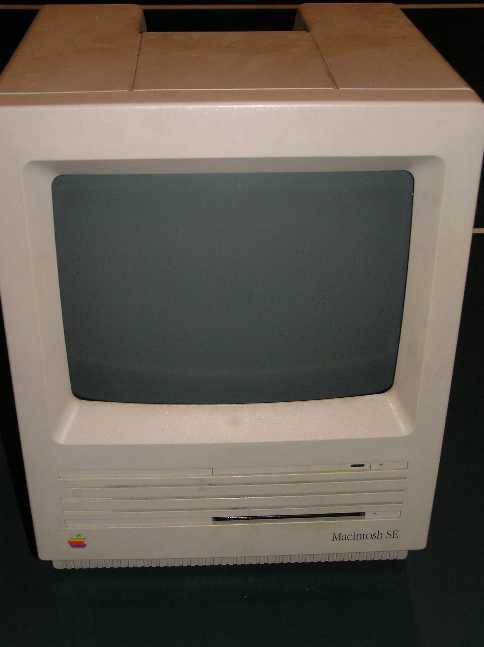

Macintosh SE

MACINTOSH SE


 Apple's Macintosh SE was launched in 1987 at same time as the Macintosh II. It was an enhanced version of the Macintosh 128 and the Macintosh Plus. It has almost the same characteristics as this last one and, unlike to the Mac Plus, it has an extension slot (which is not compatible with the NUBUS slots of the Macintosh II).

A little trivia: the ROM uses only 89 KB on the 256 KB, so to fill the chip, Apple put the photos of the development team into the ROM, to see these photos, press the debug button then type: G 41D89A.

Some of the Mac 128, the 512, the 512E (same but with 800K floppy drive), and the SE have the signatures of their developers molded as engravings on the inside of the case at the rear.
